Production Printers

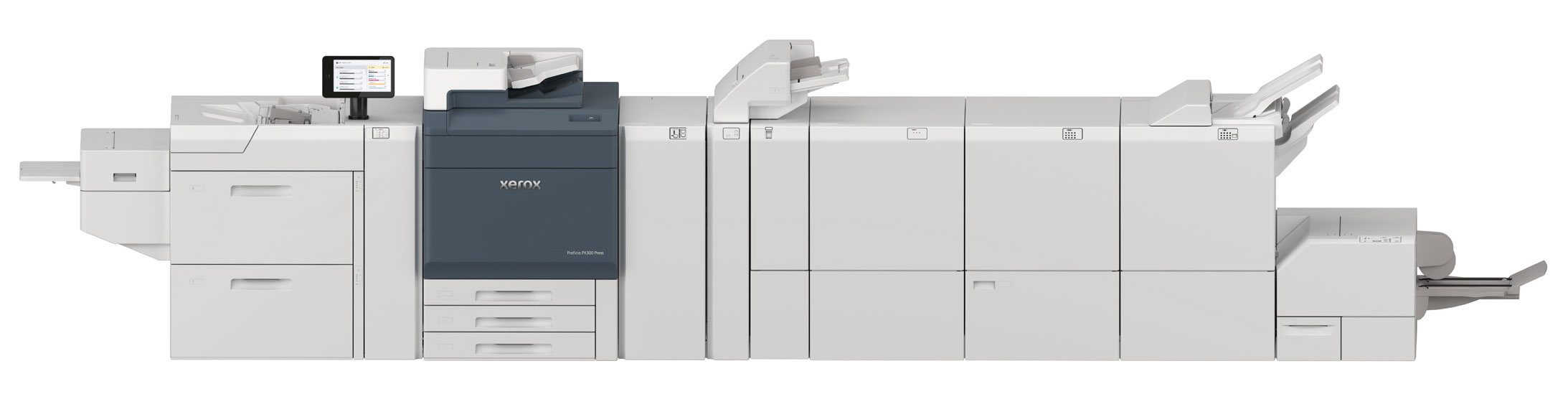

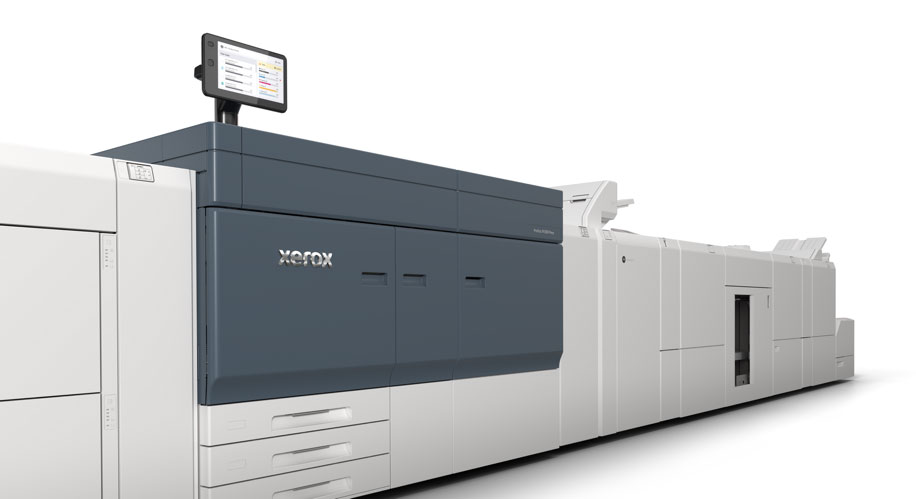

Xerox Proficio PX300 Production Press
Production print agility, perfected. Big capability in a compact, flexible footprint.
- Delivers exceptional image quality with productivity-boosting automation
- Built for nimble operations like small print shops, in-plants, and franchises
- Handles a wide range of media at high speeds, from business cards and envelopes to finished brochures and extra-long banners
- Optional 5th colour station unlocks Speciality Ink enhancements Beyond CMYK, making professional results easy for anyone
Up to 85ppm
Up to 150Kpages/month
Xerox Proficio PX300 Production Press
Paper size
Format/Sizes
Maximum size: 330 mm x 1.3 m
Maximum standard sheet: 330 mm x 488 mm
Minimum size: 98 mm x 148 mm
Paper weight
Flexibility/Weights
Coated, uncoated, envelopes, tabs, polyester/ synthetic, textured, coloured, banner, custom media and mixed-stock printing
52–256 gsm from Trays 1–3
52–400 gsm from Bypass
52–220 gsm from optional HCF
52–400 gsm from optional OHCF
52–400 gsm from optional Adv OHCF
52–400 gsm from optional HCVF
Paper capacity
Capacity/Handling
Base Press (1900 sheet capacity at 80 gsm) Trays 1–3 (550 sheets each)
• Maximum size 330 x 488 mm
• Minimum size 140 x 182 mm
Bypass (250 sheets)
• Maximum size 330 x 660 mm
• Minimum size 98 x 148 mm
With Dual Adv OHCF (9900 sheet capacity) Trays 1–3 (550 sheets)
Bypass (250 sheets)
4 trays (8000 sheets)
Registration on standard sheets +/- 0.5 mm, 52–300 gsm
Auto-Tray Switching/Reload-While-Run Capability
Auto-Duplex 350 gsm
Simplex 400* gsm
Print speed
PRODUCTIVIT Y/PRINT SPEED
Average Monthly Print Volume: Up to 150,000
Duty Cycle: 750,000
85 ppm (A4), 52–400 gsm
All stocks rated speed, standard
Performance Enhancing Options
Beyond CMYK+ 5th Colour Overlay Station: Expand your gamut and your creative range with speciality effects that command attention and higher margins. Productivity is reduced when running the 5th station
Static Dissipation Module (SDM) Keep every sheet moving smoothly – no sticking, no downtime. Consistent performance even on tricky high-gloss and synthetic stocks
Quality Control Module (QCM) delivers closed-loop precision by automatically maintaining colour density and registration in real time. The QCM also enables hands-off alignment setup on the PX300
Xerox Job Progress Light: A highly visible light lets you see the job status across the room
RIP options
Powered by Fiery, featuring Xerox-exclusive FS700X software – co-developed to optimise performance, workflow integration and harness Xerox industry-leading colour science for unmatched image accuracy, consistency and vibrancy. All versions are designed for seamless 4- and 5-colour flexibility, which brings brilliance and precision to every print
The Fiery Smart Estimator lets operators assess PDFs in just a few clicks to determine Speciality Dry Ink costs
Xerox® EX PX300 Print Server Powered by Fiery®
Xerox® EX-Li PX300 Print Server Powered by Fiery®
